KRYFS Power Components Ltd. is one of India’s leading manufacturers of transformer core lamination having a manufacturing capacity of over 50,000 MT per year. We specialize inCut to size Laminations for transformers from 11 KV class to 1200 KV class, Built-up/Assembled Cores up to 50 MT, Core & Coil Assembly up to 50MT, Amorphous Core, Toroidal Cores, Unicores & Current Transformer (Active Part).

KRYFS is a supplier of CRGO Lamination to reputed transformer manufacturers in India like Hitachi, Bharat Bijlee Ltd., Indotech, TNR, ECE, and Bharat Heavy Electricals Ltd., and exports its products to more than 40 countries worldwide.

KRYFS is an approved CRGO core supplier to POWERGRID Corporation of India for 765 KV Class rating and supplied laminations cores for several projects of POWERGRID for Transformers & Reactors of 765 KV & 1200 KV along with HVDC jobs.

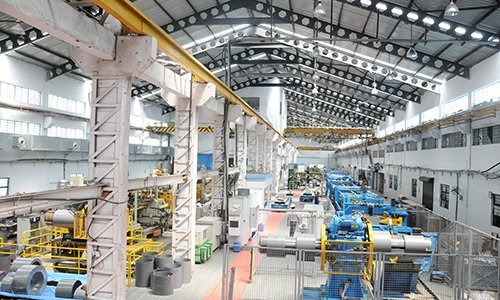

KRYFS operates from its state-of-the-art design and manufacturing facility based in Silvassa, leveraging best-in-class processes and technology. Our manufacturing facility is equipped with modern manufacturing and testing facilities, which include 10 Automatic Cutting Lines mainly from GEORG & testing equipment from BROCKHAUS, Germany. Moreover, KRYFS is the only CRGO lamination manufacturer in India to have NABL accreditation for the Testing Laboratory and we ensure dimensional accuracy through MORA German makes scale to measure high precision linear measurement.

Process Technology Center Services

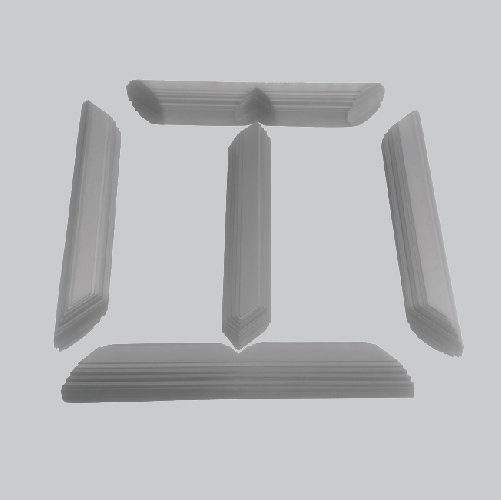

CRGO Lamination

KRYFS manufactures transformer laminations for transformers from 11 KV to 1200 KV class using Cold Rolled Grain Oriented (CRGO) steel imported from Japan, U.S.A. , U.K., Korea and Russia, in various grades (Conventional and HiB). KRYFS process laminations with a high degree of precision for transformers from 10KVA/11KV to 1000 MVA/1200 KV class as per customer specification on designs.
Specifications:
Transformer core lamination/cut to size lamination for the power and distribution transformers. Width up to 1000mm and length up to 5000 mm with auto stacking facility Strip lamination for instrument transformer industry Lamination processing capacity – 50,000 Metric Tonnes/annum

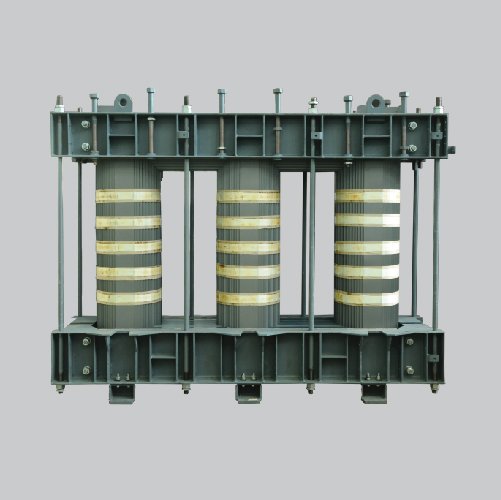

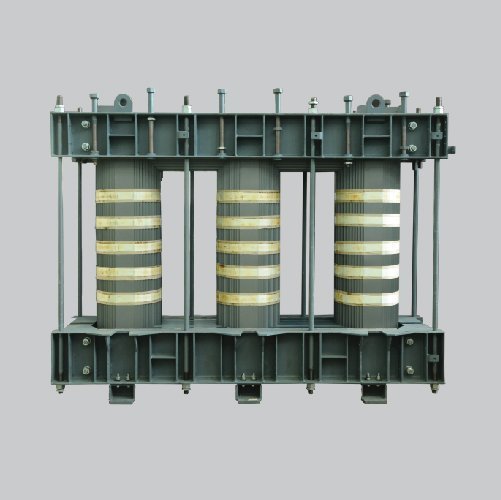

Built Transformer Core & Core Assembly

Built Transformer Cores and Core frame parts up to 50 MT. Tested for No Load Losses (NLL), appropriately packed and ready for insertion of LV and HV coils.

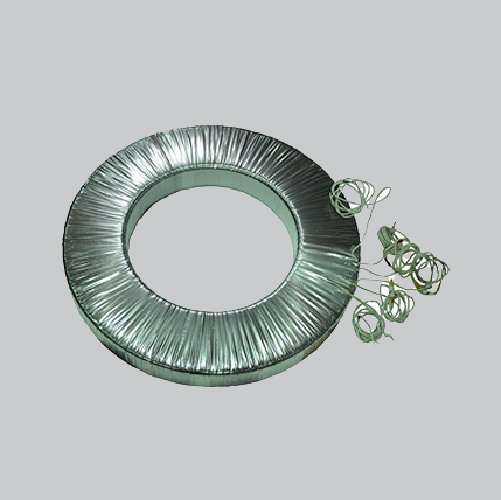

CT (ACTIVE PART)

We currently manufacture active part of CT upto an outer diameter of 1200mm and weight 150 kgs on (V & C) double headed copper winding machine (German Technology), one of its kind in India. Our manufacturing range includes motor class CT, Protection class CT & PS/ PX class CT. The CTs are tested on Automatic CT test system (Eltel make, a Canadian technology). The following tests are performed on CTs: Accuracy test, knee point voltage inter turn test, resistance measurement test, composite error test, HV test.

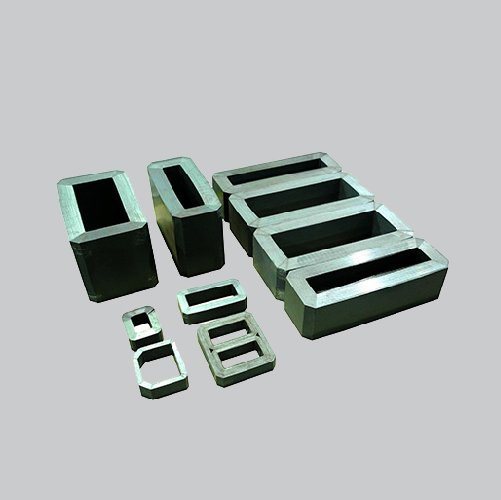

CRGO UniCores

Wound/ Unicores are manufactured for single and three phase transformers as per customer specification.

Salient Features:

  • Customized design
  • Compact construction
  • NLL are lower than stacked core
  • Low winding time
  • Quick assembly

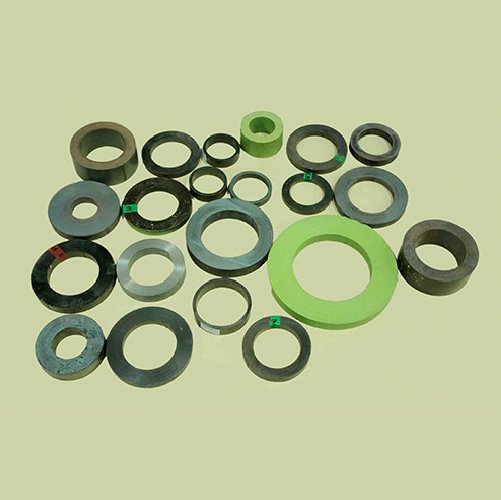

Torroidal Core

Round and rectangular Torroidal cores having the highest accuracy. Suitable for low, medium and high voltage CTs, PTs and Transformers, all the cores undergo a stringent quality check at low induction values for a specific purpose and high accuracy applications before dispatch, Post annealing in 100 % Nitrogen atmosphere with SCADA controlled furnaces at the state of art factory of KRYFS, unit 3, in Kherdi (DNH) of weight from 10gms to 200 kgs.

Features:

Winding of Wound Cores as per customer specifications.
Annealing in SCADA controlled the Nitrogen atmosphere for 18 to 24 hours (at 800 C).
100% of our cores are tested before dispatch so our customers get only those cores in line with the guaranteed specs.
Torroidal strip wound cores form a virtually air gap free magnetic circuit and constant cross section and generally offer magnetic properties very near to that of the raw material.
Varnishing and colour coding is done as per our customer specification.

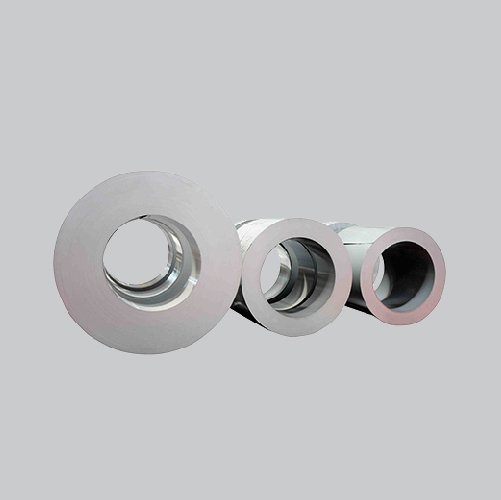

CRGO Slit Coil

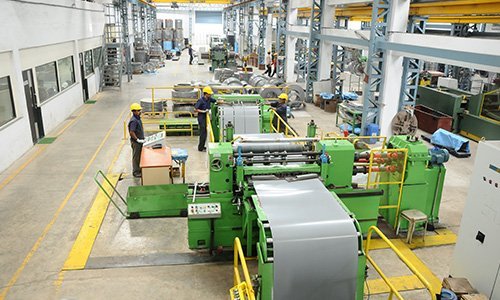

KRYFS offers the complete range of CRGO Slit Coils in sizes ranging from 10 mm upwards and thickness ranging from 0.23 mm to 0.30 mm in various Conventional and Hi-B & Domain Refined grades. These are slitted on an automated GEORG CNC machine to attain minimum burr on the slitting edges of the coils, which is typically less than 5 microns. We manufacture these products in line with the global quality standards and norms, per IEC 60404-8-7.
  • Research & Technology Center

Fabrik’s Product Technology Section empowers engineers and professionals with extensive, cutting-edge resources. This includes advanced testing, intricate modeling, thorough failure analysis, and more. These tools are harnessed to craft the next wave of steel innovations across various applications. Within these laboratories and facilities, the future of steel takes shape.

Mechanical Testing Facilities

At our Mechanical Testing facilities, we leverage automated equipment for conducting essential tests such as tensile and hardness measurements. These tests play a pivotal role in establishing the mechanical attributes of materials, bolstering product development and aiding customer projects. Our array of testing frames spans from 5 to 220 kip, encompassing both tensile testing and stress- or strain-controlled fatigue testing.

Electrical Steels Laboratory

The Electrical Steels Laboratory at Fabrik encompasses a range of processing and testing amenities. These are geared towards assessing cold-rolled magnetic lamination steels, which find application in producing motors, transformers, ballasts, and various electrical apparatuses. Within our laboratory, you’ll find QDA furnaces, AC and DC magnetic testers, and an interlaminar resistance tester—critical tools for our comprehensive evaluation processes.
